Dampeners

Enhance Your Pump System Performance

Cognito pulsation dampeners are designed to deliver optimal performance and protection for your pump systems. Compatible with both AODD and EODD pump technologies, they play a crucial role in reducing pulsations and vibrations caused by positive displacement pumps, ensuring smooth flow and consistent pressure.

Contact an Expert
Download the Brochure

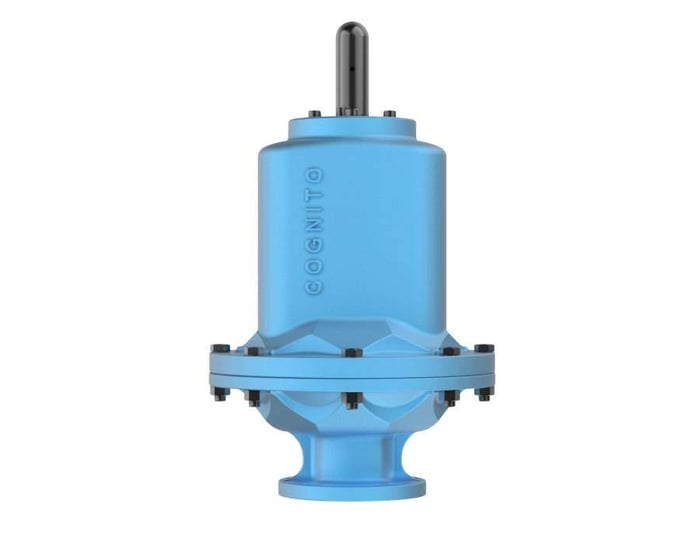

EODD pump pulsation dampener
Dampener Specs

View the Pump Only Service Manual for additional product information and specs.

* Note: Dampeners are automatic and require a continuous compassed air source.

Material of Construction
A / SS / PP
Dampener Size
1", 2", & 3"
Max. Pressure
8 bar (116 psi)
Diaphragm Material
Santoprene / Santoprene PTFE Overlay
Air Inlet Size
1/8" NPT

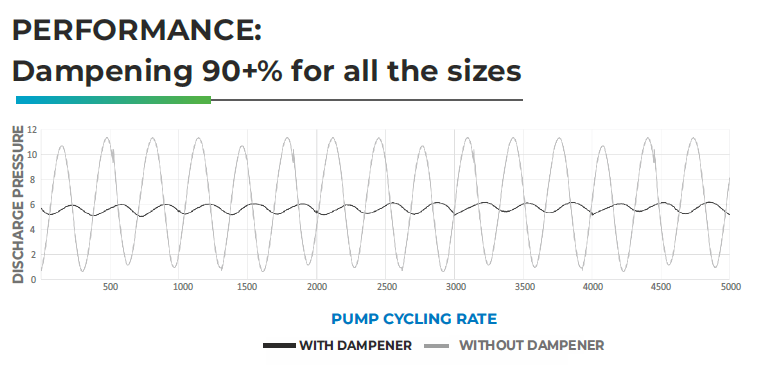

How Pulsation Dampeners Work

A pulsation dampener uses a flexible diaphragm to separate a liquid chamber from a compressed air chamber. A rod connected to the center of the diaphragm activates the air inlet and exhaust, which automatically adjusts the air chamber pressure. This maintains the diaphragm in the mid-range of the stroke to eliminate flow pulsation and pressure spikes.

EODD pump pulsation dampener
image (20)

Markets & Materials

Dampeners are suitable for EODD pump models and are available in aluminum and stainless-steel wetted housings, ensuring compatibility and durability for various applications. Pulsation dampeners are ideal for a variety of industrial processes involving reciprocating pumps, including:

Path 4779

Ceramics

Ceramics
Path 4778 (1)

Paints, Coating, Dyes & Pigments

Paints, Coating, Dyes & Pigments
Path 4777

Pulp, Paper & Packaging

Pulp, Paper & Packaging
Path 4776

Metals & Mining

Metals & Mining
Path 4772

Chemical & Specialty Chemical

Chemical & Specialty Chemical
Path 4773

Lithium Battery

Lithium Battery
Path 4774

Oil & Gas

Oil & Gas
Path 4775

Pharmaceutical

Pharmaceutical

Safeguard Your EODD Pumps

Dampeners offer solutions across industries due to their effectiveness in addressing pulsation issues. Let's discuss your needs.

Smooth Operation

Features & Benefits

Our dampeners offer several key features and benefits that enhance the overall performance of your pump systems:

Smooth, Pulsation-Free Flow

Smooth, Pulsation-Free Flow

Hassle-Free Automatic Controlling

Hassle-Free Automatic Controlling

Stabilized Pressure Conditions

Stabilized Pressure Conditions

Vibration-Free Pipes

Vibration-Free Pipes

Compatible With Variable Pressures

Compatible With Variable Pressures

Improved Pump Life

Improved Pump Life
